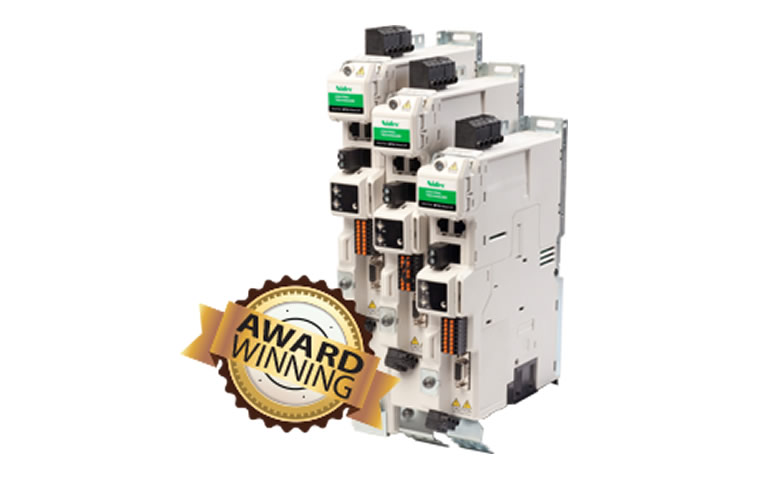

Digitax HD Servo Drives award 0.7 Nm - 51 Nm with 153 Nm peak

1.5 A – 16 A with 48 A peak

200 V | 400 V

0.25 kW - 7.5 kW

Minimum size, maximum performance

The Digitax HD servo drive series extends the Unidrive M range with maximum servo performance in a minimum size package.

Optimized for high-dynamic applications, Digitax HD provides the flexibility of both standalone and modular configurations. The drive offers full servo control plus open loop permanent magnet motor and induction motor control across four functionality levels: EtherCAT, MCi machine control, Ethernet and the flexible Base servo drive.

Reduce cost with small servo drives. One servo system for all your automation needs.

Minimal footprint and exceptional power density make Digitax HD one of the smallest servo drives on the market today. This means that you can build the most compact cabinets possible.

Drive width of only 1.6 inches (40 mm)

Reduce cabinet height with UltraFlow™ technology which dissipates heat directly outside of the cabinet

Install Digitax HD in a cabinet just 8 inches (200 mm) deep

REDUCE COSTS AND MAXIMIZE FLOOR SPACE!

Boost throughput with maximum motion control digitax hd servo drives motor control Optimized for high-dynamic applications and with high speed control loops, Digitax HD is one of the best performing servo drives on the market today.

This means maximum throughput and product quality from your machines.

300% peak current performance pulse-duty overload

Optimized control loops for high dynamic performance

Up to 16 kHz switching frequency

Rapid installation and commissioning from standalone to a modular servo system

Digitax HD servo series can be used standalone and is also fast and easy to set up as a modular system.

Single AC input, 24 V and communication links, and common DC bus

DIN rail alignment, single cable technology and easy access pluggable connectors

Fast programming and commissioning PC tools
