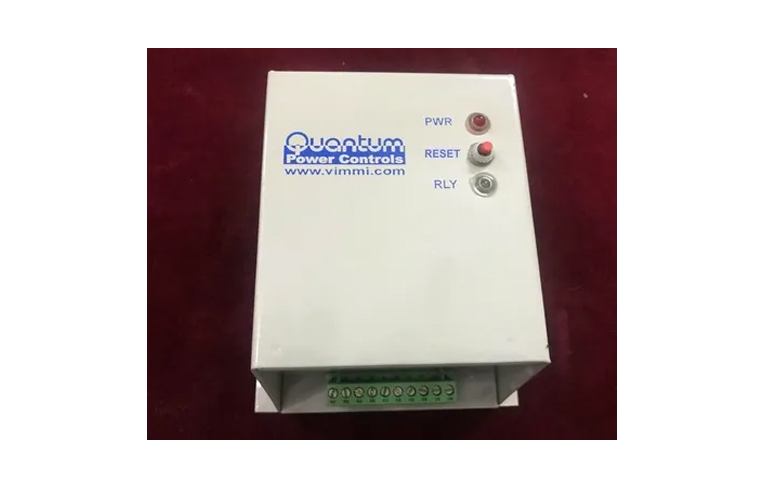

Sensor Controller

Sensor fitted on Thread Rolling Machine Sensor Controller
This Sensor controller is basically designed to be used in Thread Rolling Machine for Blank Floating Inspection. However, it may be used in the, among other, following applications:

-Thread Rolling Machines

-Any other application requiring resettable one shot operation.

Because of its rugged design it withstands the severe environmental conditions of the Machine tool industry.

It is compact, highly reliable, and low cost controller

Specifications:

Power supply: 110V or 220V or 415V AC ±10%, 50Hz
Input: Proximity Sensor or Photo Sensor or Simple Potential Free Contact.
Output: Relay Contact (5A / 250VAC)
Response Time: 1ms
Sensor Supply Output: 12V DC / 40mA
Current Consumption: 3VA
Operating Temperature: -20°C to 60°C
Enclosure: Sheet Steel
